Uplift Modeling with Custom Likelihood#

This example uses the Hillstrom email marketing dataset to estimate the causal effect of two email campaigns on customer conversion and spending. We build two NumPyro models, one for conversion and one for spend (a logistic regression and a hurdle model with a custom likelihood via factor(), respectively), fit them through the ImpactModel interface, and use estimate_effect() to compute treatment effects.

import logging

import arviz_base as az
import arviz_plots as azp
import arviz_stats as azs
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import matplotlib.ticker as mtick
import numpy as np
import numpyro.distributions as dist
import pandas as pd
from jax import Array, random
from numpyro import deterministic, factor, plate, sample
from numpyro.infer import MCMC, NUTS

from aimz import ImpactModel

logging.basicConfig(level=logging.INFO, force=True)

# Force JAX to use CPU even if GPU is available
jax.config.update("jax_platform_name", "cpu")
# Set the number of CPU devices JAX sees (for CPU-based parallelism)
jax.config.update("jax_num_cpu_devices", 2)

# Configure the inline backend for high-resolution figures
%config InlineBackend.figure_format = "retina"

# Set the style for ArviZ plots
azp.style.use("arviz-variat")

# Set a random seed for reproducibility
rng_key = random.key(532)

The Hillstrom Dataset#

The dataset comes from a randomized experiment at an e-commerce company, where 64,000 customers who had made a purchase within the past twelve months were randomly assigned to one of three groups:

Men’s E-Mail: received an email promoting men’s merchandise.
Women’s E-Mail: received an email promoting women’s merchandise.
No E-Mail: control group, received no email.

Two weeks after the email was sent, three outcomes were recorded: whether the customer visited the website, whether they made a purchase, and how much they spent.

df = pd.read_csv(
    "http://www.minethatdata.com/"
    "Kevin_Hillstrom_MineThatData_E-MailAnalytics"
    "_DataMiningChallenge_2008.03.20.csv",
)

The dataset contains the following 11 columns:

Covariates (pre-treatment customer attributes):
- recency: months since last purchase (integer, 1–12).
- history: total dollar value spent in the past year (continuous).
- mens: 1 if the customer purchased men’s merchandise in the past year, 0 otherwise.
- womens: 1 if the customer purchased women’s merchandise in the past year, 0 otherwise.
- newbie: 1 if the customer is new (first purchase within twelve months), 0 otherwise.
- zip_code: residential area classification (Urban / Suburban / Rural).
- channel: purchase channel in the past year (Phone / Web / Multichannel).
Treatment: segment, one of “Mens E-Mail”, “Womens E-Mail”, or “No E-Mail”.
Outcomes (measured during two weeks following the email):
- visit: 1 if the customer visited the website, 0 otherwise.
- conversion: 1 if the customer made a purchase, 0 otherwise.
- spend: dollar amount spent (0 for non-purchasers).

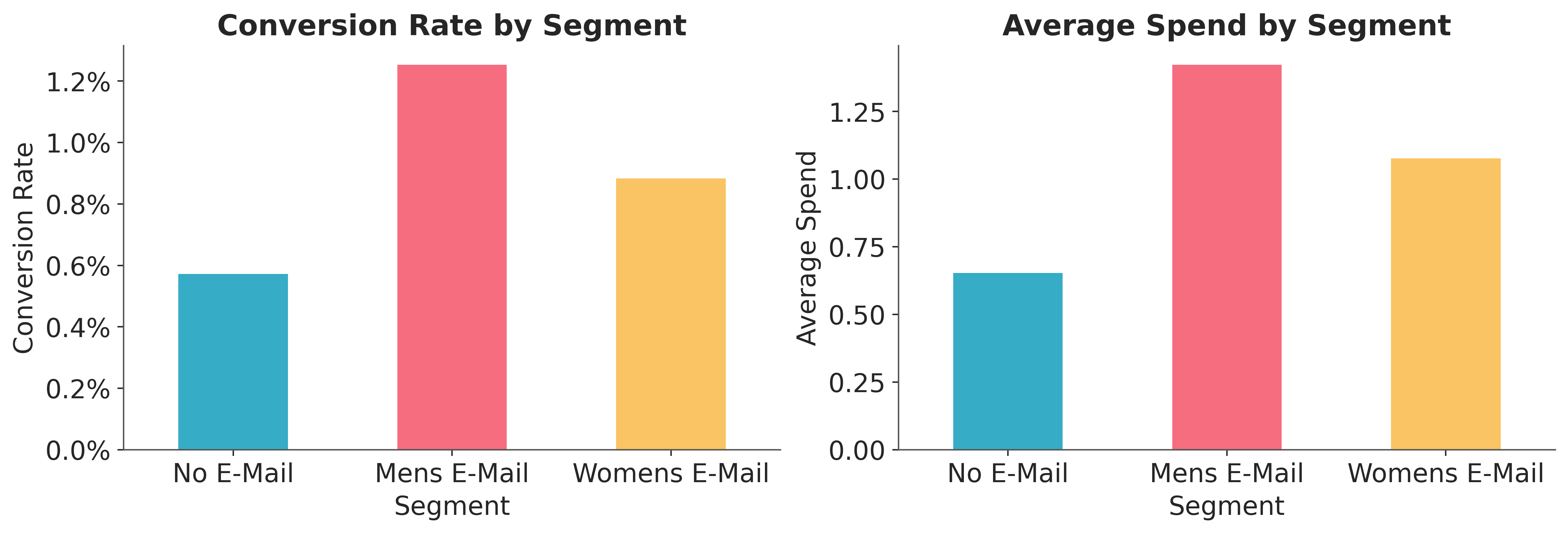

The bar charts below show the raw conversion rates and average spend by treatment arm.

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
segments = ["No E-Mail", "Mens E-Mail", "Womens E-Mail"]

# Conversion rate
conv = df.groupby("segment")["conversion"].mean().reindex(segments)
conv.plot.bar(ax=axes[0], color=[f"C{i}" for i in range(len(conv))])
axes[0].set(
    xlabel="Segment",
    ylabel="Conversion Rate",
    title="Conversion Rate by Segment",
)
axes[0].yaxis.set_major_formatter(mtick.PercentFormatter(xmax=1, decimals=1))
axes[0].tick_params(axis="x", rotation=0)

# Average spend
spend = df.groupby("segment")["spend"].mean().reindex(segments)
spend.plot.bar(ax=axes[1], color=[f"C{i}" for i in range(len(spend))])
axes[1].set(
    xlabel="Segment", ylabel="Average Spend",
    title="Average Spend by Segment",
)
axes[1].tick_params(axis="x", rotation=0);

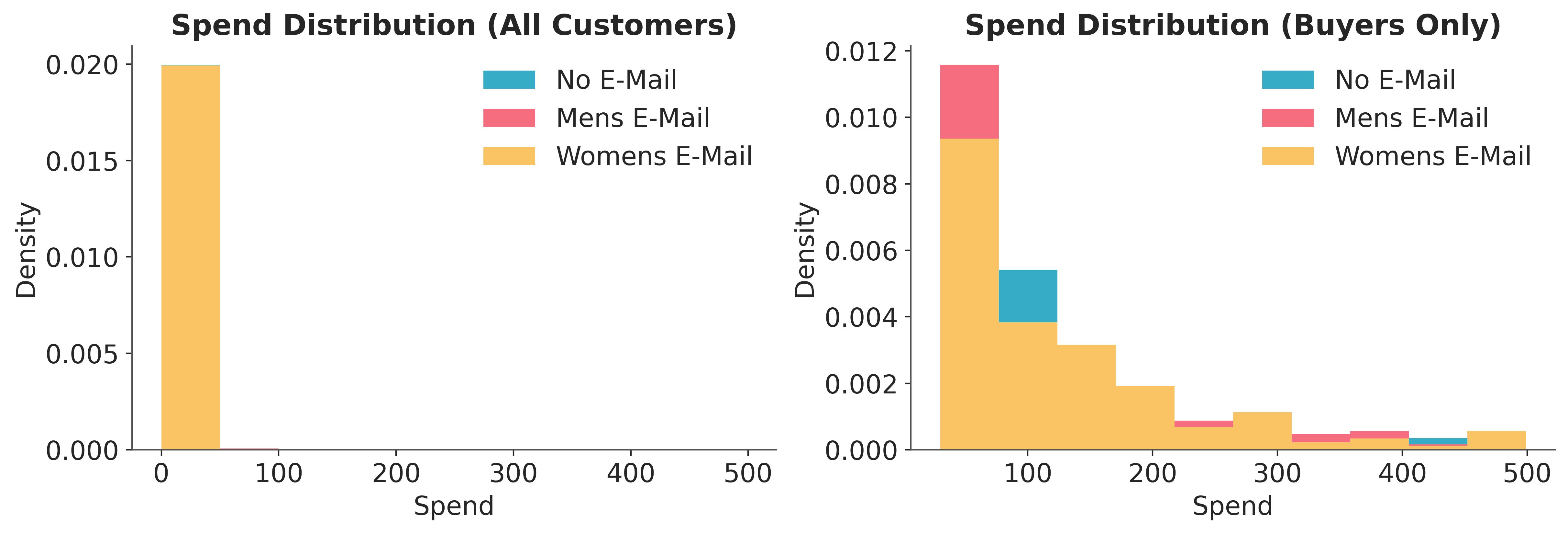

The email groups show higher conversion rates and spend than the control group.

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

# All customers
for i, seg in enumerate(segments):
    subset = df.loc[df["segment"] == seg, "spend"]
    axes[0].hist(subset, label=seg, color=f"C{i}", density=True)
axes[0].set(xlabel="Spend", ylabel="Density")
axes[0].set_title("Spend Distribution (All Customers)")
axes[0].legend()

# Buyers only
for i, seg in enumerate(segments):
    subset = df.loc[(df["segment"] == seg) & (df["spend"] > 0), "spend"]
    axes[1].hist(subset, label=seg, color=f"C{i}", density=True)
axes[1].set(xlabel="Spend", ylabel="Density")
axes[1].set_title("Spend Distribution (Buyers Only)")
axes[1].legend();

The left panel confirms that the spend distribution is heavily zero-inflated: the vast majority of customers do not purchase. The right panel, restricted to buyers, shows a right-skewed but roughly continuous distribution across all three segments.

Before modeling, we check that covariates are balanced across treatment arms, as expected in a randomized experiment.

balance_num = df.groupby("segment")[
    ["recency", "history", "mens", "womens", "newbie"]
].mean()

balance_cat = pd.concat(
    [
        pd.crosstab(df["segment"], df[col], normalize="index").rename(
            columns=lambda v, c=col: f"{c}: {v}",
        )
        for col in ["zip_code", "channel"]
    ],
    axis=1,
)

balance_num.join(balance_cat).round(2).T

segment	Mens E-Mail	No E-Mail	Womens E-Mail
recency	5.77	5.75	5.77
history	242.84	240.88	242.54
mens	0.55	0.55	0.55
womens	0.55	0.55	0.55
newbie	0.50	0.50	0.50
zip_code: Rural	0.15	0.15	0.15
zip_code: Surburban	0.45	0.45	0.45
zip_code: Urban	0.40	0.40	0.40
channel: Multichannel	0.12	0.12	0.12
channel: Phone	0.43	0.44	0.44
channel: Web	0.45	0.44	0.44

The means (for numeric covariates) and within-row proportions (for categorical covariates) are nearly identical across segments, confirming that the randomization worked as intended.

Note

Regarding causal identification, randomization ensures that treatment assignment is independent of potential outcomes, giving us ignorability (no confounding) and positivity by design. Consistency (a customer’s observed outcome equals the potential outcome under the assigned treatment) and no interference (one customer’s treatment does not affect another’s outcome) are not guaranteed by randomization and must be argued on domain grounds.

We encode the treatment segment as an integer, one-hot encode the categorical covariates, standardize the continuous ones for better sampling, and pack everything into JAX arrays.

# Map segment names to integer IDs for modeling
df["segment"] = df["segment"].map({name: i for i, name in enumerate(segments)})

# Dummy-encode categorical covariates
df = pd.get_dummies(
    df,
    columns=["zip_code", "channel"],
    drop_first=True,
    dtype=int,
)

# Standardize continuous covariates for better sampling
cols_to_standardize = ["recency", "history"]
df[cols_to_standardize] = (
    df[cols_to_standardize] - df[cols_to_standardize].mean()
) / df[cols_to_standardize].std(ddof=0)

# Build JAX arrays
segment = jnp.asarray(df["segment"].to_numpy(), dtype=jnp.int32)
X = jnp.asarray(
    df[
        ["recency", "history", "mens", "womens", "newbie"]
        + [c for c in df.columns if c.startswith(("zip_code_", "channel_"))]
    ].to_numpy(),
    dtype=jnp.float32,
)
y_conversion = jnp.asarray(df["conversion"].to_numpy(), dtype=jnp.int32)
y_spend = jnp.asarray(df["spend"].to_numpy(), dtype=jnp.float32)

Model 1: Conversion#

We model conversion as a Bayesian logistic regression. The linear predictor includes a global intercept, covariate effects, and a segment-specific shift that captures the treatment effect. The covariate coefficients are shared across treatment arms (no treatment x covariate interactions), so the treatment effect is homogeneous on the logit scale.

n_obs, n_features = X.shape


def conversion_model(X: Array, segment: Array, y: Array | None = None) -> None:
    alpha = sample("alpha", dist.Normal(0.0, 1.0))
    beta = sample("beta", dist.Normal(0.0, 1.0).expand([n_features]))
    tau = sample("tau", dist.Normal(0.0, 1.0).expand([len(segments)]))

    logit = alpha + X @ beta + tau[segment]

    with plate("obs", n_obs):
        sample("y", dist.Bernoulli(logits=logit), obs=y)

The parameter tau[0] corresponds to the control group (No E-Mail), tau[1] to the Men’s E-Mail, and tau[2] to the Women’s E-Mail. The global intercept alpha and segment shifts tau are not separately identifiable, but the treatment-effect contrasts \(\tau_1 - \tau_0\) and \(\tau_2 - \tau_0\) are always identified. While those contrasts live on the logit scale, our target estimand is the Average Treatment Effect (ATE) on the outcome scale, computed by predicting potential outcomes under counterfactual treatment assignments and averaging over observations.

We wrap the model in an ImpactModel, which provides a unified interface for fitting, prediction, and treatment-effect estimation. Calling fit_on_batch() runs the configured inference engine (here MCMC with the No-U-Turn Sampler) on the entire dataset in one pass.

rng_key, rng_subkey = random.split(rng_key)
im_conv = ImpactModel(
    conversion_model,
    rng_key=rng_subkey,
    inference=MCMC(
        NUTS(conversion_model),
        num_warmup=500,
        num_samples=250,
        num_chains=2,
    ),
)

im_conv.fit_on_batch(X, y_conversion, segment=segment)

After fitting, the underlying NumPyro inference object is accessible via inference. We use it here to print MCMC diagnostics.

azs.summary(az.from_numpyro(im_conv.inference))

	mean	sd	eti89_lb	eti89_ub	ess_bulk	ess_tail	r_hat	mcse_mean	mcse_sd
alpha	-3.44	0.52	-4.3	-2.6	209	213	1.00	0.037	0.029
beta[0]	-0.206	0.048	-0.28	-0.13	514	232	1.01	0.0022	0.0014
beta[1]	0.186	0.04	0.12	0.25	391	375	1.00	0.002	0.0013
beta[2]	0.3	0.13	0.1	0.51	313	250	1.00	0.0073	0.0051
beta[3]	0.42	0.12	0.23	0.63	293	243	1.00	0.0072	0.0052
beta[4]	-0.431	0.087	-0.57	-0.29	500	278	1.00	0.0039	0.0027
beta[5]	-0.32	0.112	-0.5	-0.14	458	351	1.00	0.0052	0.0035
beta[6]	-0.25	0.117	-0.44	-0.063	371	336	1.01	0.0061	0.004
beta[7]	-0.21	0.14	-0.43	0.023	303	332	1.01	0.0082	0.0053
beta[8]	-0.03	0.13	-0.23	0.19	297	235	1.01	0.0077	0.0054
tau[0]	-1.64	0.52	-2.5	-0.82	207	202	1.01	0.037	0.027
tau[1]	-0.86	0.52	-1.8	-0.054	215	191	1.01	0.036	0.027
tau[2]	-1.21	0.52	-2.1	-0.4	211	180	1.01	0.037	0.028

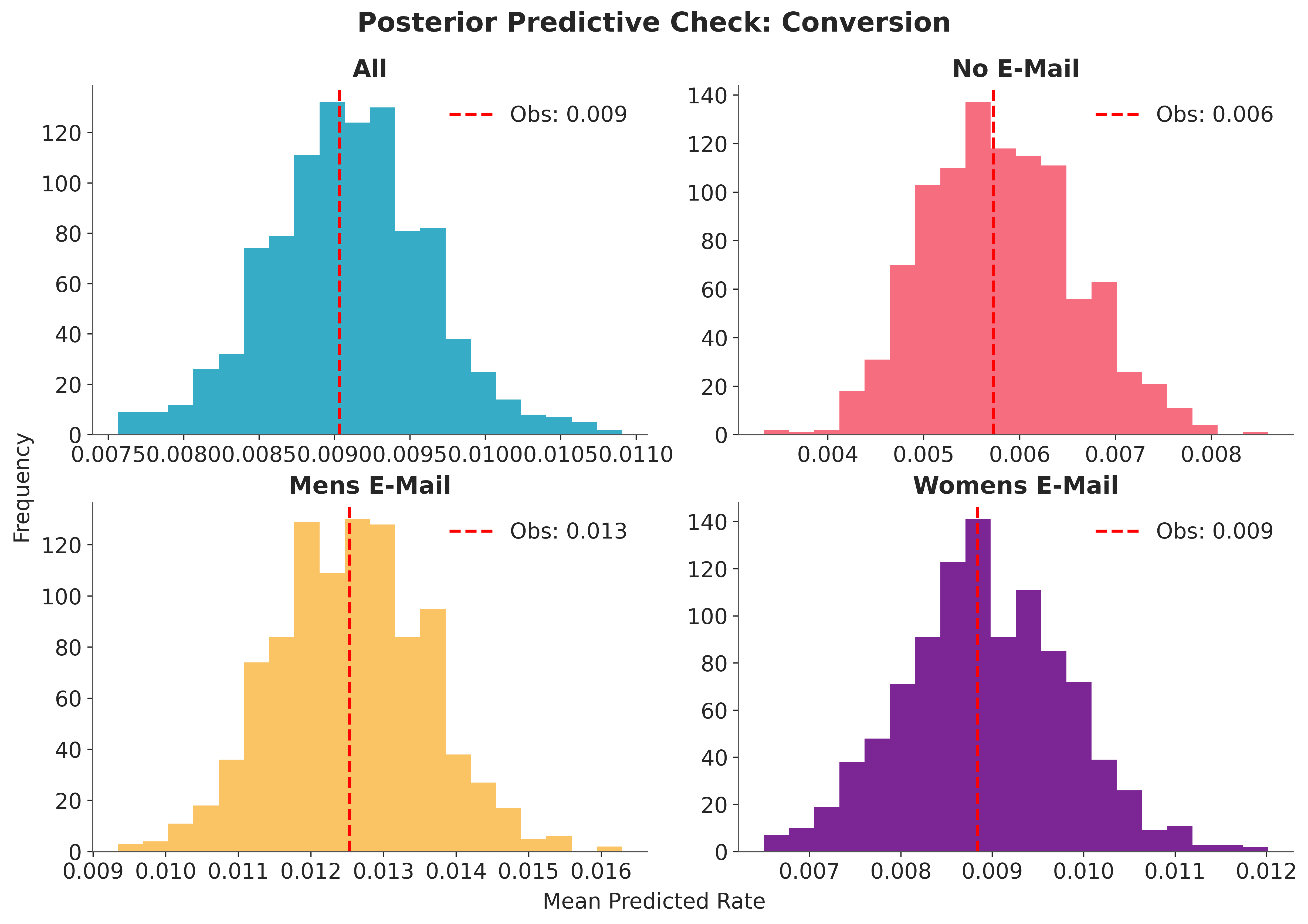

Before estimating treatment effects, we run a posterior predictive check to verify that the model reproduces the observed conversion rates, overall and per treatment arm. predict_on_batch() generates posterior predictive samples and returns an DataTree.

pp_conv = dt_conv.posterior_predictive["y"]

fig, axes = plt.subplots(2, 2, figsize=(12, 8), layout="constrained")
axes = axes.flatten()

# Overall
obs_overall = float(y_conversion.mean())
pred_overall = pp_conv.mean(dim="y_dim_0").to_numpy().flatten()
axes[0].hist(pred_overall, bins=20, color="C0")
axes[0].axvline(
    obs_overall,
    color="red",
    linestyle="--",
    linewidth=2,
    label=f"Obs: {obs_overall:.3f}",
)
axes[0].set_title("All")
axes[0].legend()

# Per treatment arm
for arm_id, arm_name in enumerate(segments):
    mask = np.asarray(segment == arm_id)
    obs_arm = float(y_conversion[mask].mean())
    pred_arm = pp_conv.isel(y_dim_0=mask).mean(dim="y_dim_0").to_numpy().flatten()
    axes[arm_id + 1].hist(pred_arm, bins=20, color=f"C{arm_id + 1}")
    axes[arm_id + 1].axvline(
        obs_arm,
        color="red",
        linestyle="--",
        linewidth=2,
        label=f"Obs: {obs_arm:.3f}",
    )
    axes[arm_id + 1].set_title(arm_name)
    axes[arm_id + 1].legend()

fig.supxlabel("Mean Predicted Rate")
fig.supylabel("Frequency")
fig.suptitle(
    "Posterior Predictive Check: Conversion",
    fontsize=18,
    fontweight="bold",
    y=1.05,
);

The observed rate (red dashed line) falls within the bulk of the posterior predictive distribution for each arm, indicating an adequate fit.

Estimating Treatment Effects on Conversion#

With the fitted model in hand, we now estimate treatment effects. estimate_effect() takes two scenarios, each a dict of keyword arguments that would be passed to the underlying prediction method. For every posterior draw, it generates predictions under both scenarios, subtracts baseline from intervention, and returns per-observation differences as an DataTree.

Because segment is a function argument rather than a sample() site, each counterfactual scenario is specified by passing the desired treatment value directly.

effect_conv_mens = im_conv.estimate_effect(
    args_baseline={
        "X": X,
        "segment": jnp.zeros(n_obs, dtype=jnp.int32),
    },
    args_intervention={
        "X": X,
        "segment": jnp.ones(n_obs, dtype=jnp.int32),
    },
    on_batch=True,
)

effect_conv_womens = im_conv.estimate_effect(
    args_baseline={
        "X": X,
        "segment": jnp.zeros(n_obs, dtype=jnp.int32),
    },
    args_intervention={
        "X": X,
        "segment": 2 * jnp.ones(n_obs, dtype=jnp.int32),
    },
    on_batch=True,
)

Averaging the per-observation differences over all customers gives the ATE posterior, one value per draw, fully propagating parameter uncertainty.

ate_conv_mens = effect_conv_mens.posterior_predictive["y"].mean(dim="y_dim_0")
ate_conv_womens = effect_conv_womens.posterior_predictive["y"].mean(dim="y_dim_0")

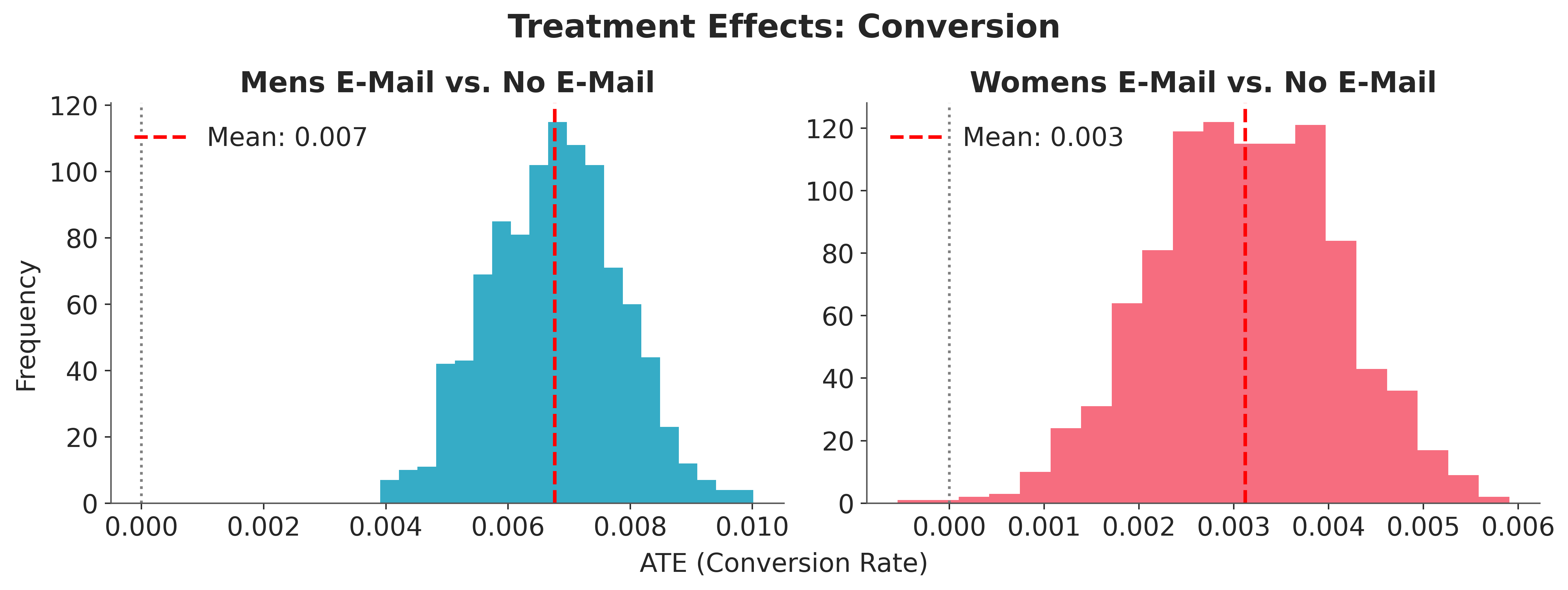

We plot the ATE posteriors for both campaigns alongside the posterior mean and a zero-effect reference.

fig, axes = plt.subplots(1, 2, figsize=(12, 4), layout="constrained")

for i, (ax, ate, label) in enumerate(
    zip(
        axes,
        [ate_conv_mens, ate_conv_womens],
        ["Mens E-Mail vs. No E-Mail", "Womens E-Mail vs. No E-Mail"],
        strict=True,
    ),
):
    pp_ate = ate.to_numpy().flatten()
    ax.hist(pp_ate, bins=20, color=f"C{i}")
    mean = pp_ate.mean()
    ax.axvline(
        mean,
        color="red",
        linestyle="--",
        linewidth=2,
        label=f"Mean: {mean:.3f}",
    )
    ax.axvline(0, color="gray", linestyle=":")
    ax.set_title(label)
    ax.legend()

fig.supxlabel("ATE (Conversion Rate)")
fig.supylabel("Frequency")
fig.suptitle(
    "Treatment Effects: Conversion",
    fontsize=18,
    fontweight="bold",
    y=1.1,
);

Both posterior distributions sit entirely above zero, providing strong evidence that both campaigns increase conversion relative to the control group. The Men’s E-Mail effect is somewhat larger, though the posteriors overlap substantially.

Model 2: Spend#

Spend is zero for most customers and right-skewed among buyers. We use a hurdle model with two components: a Bernoulli gate for whether the customer purchases at all, and a log-normal distribution for the spend amount conditional on purchasing.

This model demonstrates how ImpactModel handles custom likelihoods. Because the hurdle likelihood does not decompose into a single sample() statement, we compute the log-likelihood manually and register it with factor() during fitting. At prediction time, we switch to the generative form: sample purchase from the Bernoulli, sample amount from the log-normal distribution, and return their product as y.

def spend_model(X: Array, segment: Array, y: Array | None = None) -> None:
    # --- Hurdle component: P(spend > 0) ---
    alpha_h = sample("alpha_h", dist.Normal(-5.0, 1.0))
    beta_h = sample("beta_h", dist.Normal(0.0, 1.0).expand([n_features]))
    tau_h = sample("tau_h", dist.Normal(0.0, 1.0).expand([len(segments)]))
    logit = alpha_h + X @ beta_h + tau_h[segment]

    # --- Amount component: log(spend) | spend > 0 ---
    alpha_a = sample("alpha_a", dist.Normal(5.0, 1.0))
    beta_a = sample("beta_a", dist.Normal(0.0, 1.0).expand([n_features]))
    tau_a = sample("tau_a", dist.Normal(0.0, 1.0).expand([len(segments)]))
    sigma = sample("sigma", dist.HalfNormal(1.0))
    mu = alpha_a + X @ beta_a + tau_a[segment]

    if y is not None:
        is_zero = y == 0.0
        with plate("obs", n_obs):
            log_lik = jnp.where(
                is_zero,
                jax.nn.log_sigmoid(-logit),
                jax.nn.log_sigmoid(logit)
                + dist.LogNormal(mu, sigma).log_prob(jnp.where(is_zero, 1.0, y)),
            )
            factor("y", log_lik)
    else:
        with plate("obs", n_obs):
            purchase = sample("purchase", dist.Bernoulli(logits=logit))
            amount = sample("amount", dist.LogNormal(mu, sigma))
            deterministic("y", purchase * amount)

The intercepts are centered on domain-appropriate values for each component: a low baseline purchase probability for the hurdle, and a plausible log-scale spend level for the amount.

We fit the hurdle model using the same MCMC configuration as before.

rng_key, rng_subkey = random.split(rng_key)
im_spend = ImpactModel(
    spend_model,
    rng_key=rng_subkey,
    inference=MCMC(
        NUTS(spend_model),
        num_warmup=500,
        num_samples=250,
        num_chains=2,
    ),
)

im_spend.fit_on_batch(X, y_spend, segment=segment)

MCMC diagnostics:

azs.summary(az.from_numpyro(im_spend.inference))

	mean	sd	eti89_lb	eti89_ub	ess_bulk	ess_tail	r_hat	mcse_mean	mcse_sd
alpha_a	4.55	0.55	3.7	5.3	235	310	1.00	0.036	0.023
alpha_h	-4.87	0.55	-5.8	-4	234	249	1.00	0.036	0.026
beta_a[0]	0.032	0.036	-0.028	0.087	628	329	1.00	0.0015	0.001
beta_a[1]	0.01	0.034	-0.044	0.062	586	402	1.00	0.0014	0.001
beta_a[2]	0.03	0.106	-0.14	0.2	431	393	1.01	0.0051	0.0035
beta_a[3]	-0.18	0.106	-0.35	-0.011	451	407	1.01	0.005	0.0034
beta_a[4]	0.039	0.077	-0.076	0.16	585	364	1.00	0.0032	0.0026
beta_a[5]	0.046	0.098	-0.11	0.2	475	405	1.00	0.0045	0.003
beta_a[6]	0.052	0.099	-0.1	0.21	454	296	1.00	0.0047	0.0034
beta_a[7]	0.071	0.111	-0.13	0.23	582	267	1.02	0.0047	0.0033
beta_a[8]	0.027	0.11	-0.16	0.2	569	344	1.02	0.0046	0.0033
beta_h[0]	-0.21	0.044	-0.28	-0.14	773	387	1.00	0.0016	0.0011
beta_h[1]	0.185	0.04	0.12	0.25	328	244	1.00	0.0022	0.0015
beta_h[2]	0.35	0.124	0.15	0.54	370	406	1.00	0.0065	0.0046
beta_h[3]	0.48	0.125	0.29	0.68	398	350	1.00	0.0063	0.0047
beta_h[4]	-0.427	0.091	-0.57	-0.29	579	462	1.00	0.0038	0.0028
beta_h[5]	-0.298	0.119	-0.49	-0.12	631	499	1.00	0.0047	0.0032
beta_h[6]	-0.22	0.119	-0.4	-0.026	493	450	1.01	0.0054	0.0038
beta_h[7]	-0.18	0.135	-0.4	0.045	513	372	1.01	0.0059	0.0042
beta_h[8]	0.01	0.126	-0.17	0.2	450	382	1.00	0.006	0.0045
sigma	0.838	0.026	0.8	0.88	830	311	1.01	0.00089	0.00055
tau_a[0]	-0.14	0.53	-0.95	0.69	244	285	1.01	0.034	0.023
tau_a[1]	-0.22	0.53	-1.1	0.65	241	275	1.00	0.034	0.023
tau_a[2]	-0.08	0.53	-0.88	0.81	233	271	1.01	0.035	0.024
tau_h[0]	-0.33	0.54	-1.2	0.54	218	193	1.00	0.037	0.026
tau_h[1]	0.46	0.54	-0.41	1.4	210	177	1.00	0.038	0.027
tau_h[2]	0.1	0.54	-0.76	1	215	178	1.01	0.037	0.026

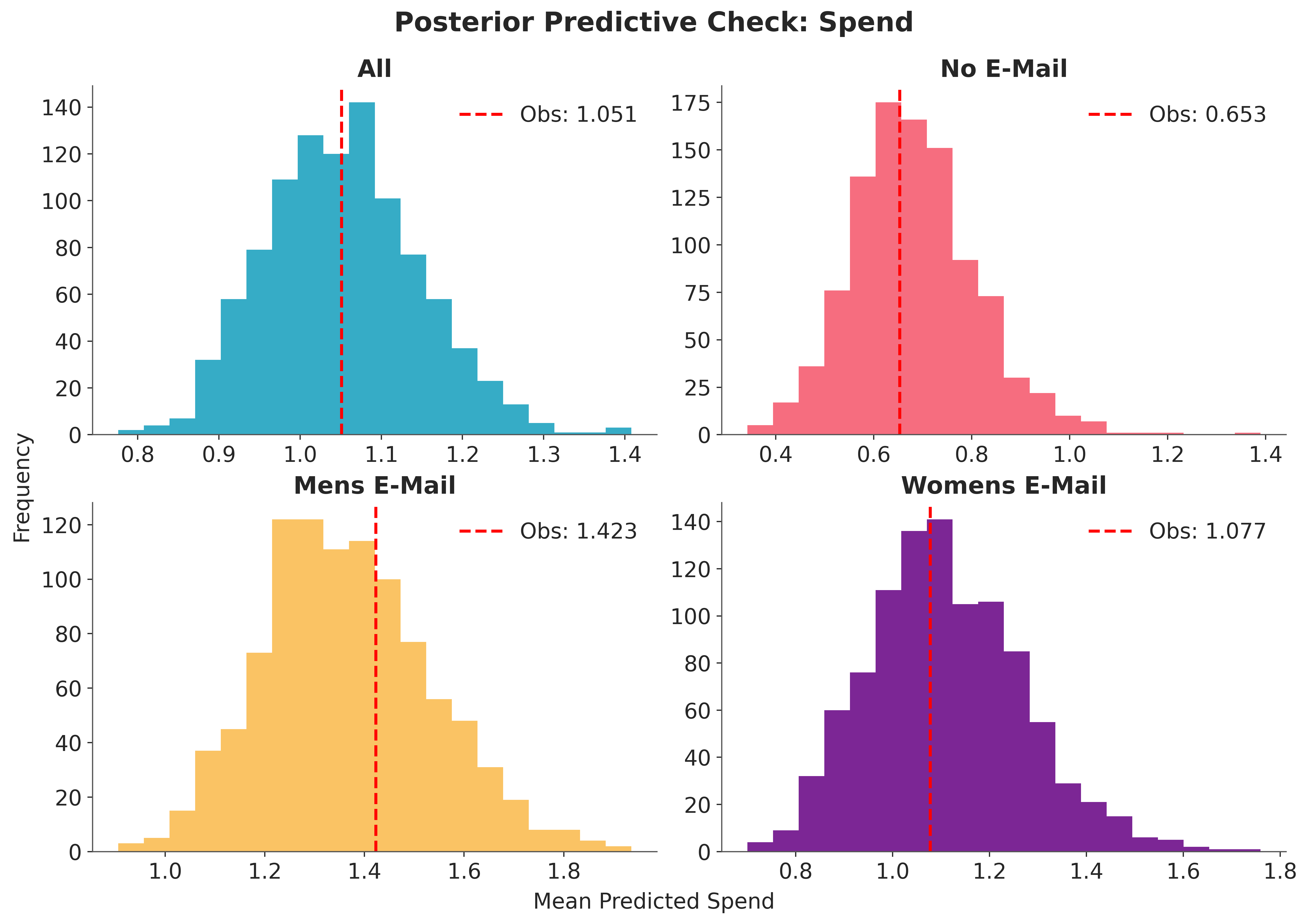

Following the same workflow as the conversion model, we check that the predicted spend matches the observed values per arm.

dt_spend = im_spend.predict_on_batch(X, segment=segment)
pp_spend = dt_spend.posterior_predictive["y"]

fig, axes = plt.subplots(2, 2, figsize=(12, 8), layout="constrained")
axes = axes.flatten()

# Overall
obs_overall = float(y_spend.mean())
pred_overall = pp_spend.mean(dim="y_dim_0").to_numpy().flatten()
axes[0].hist(pred_overall, bins=20, color="C0")
axes[0].axvline(
    obs_overall,
    color="red",
    linestyle="--",
    linewidth=2,
    label=f"Obs: {obs_overall:.3f}",
)
axes[0].set_title("All")
axes[0].legend()

# Per treatment arm
for arm_id, arm_name in enumerate(segments):
    mask = np.asarray(segment == arm_id)
    obs_arm = float(y_spend[mask].mean())
    pred_arm = pp_spend.isel(y_dim_0=mask).mean(dim="y_dim_0").to_numpy().flatten()
    axes[arm_id + 1].hist(pred_arm, bins=20, color=f"C{arm_id + 1}")
    axes[arm_id + 1].axvline(
        obs_arm,
        color="red",
        linestyle="--",
        linewidth=2,
        label=f"Obs: {obs_arm:.3f}",
    )
    axes[arm_id + 1].set_title(arm_name)
    axes[arm_id + 1].legend()

fig.supxlabel("Mean Predicted Spend")
fig.supylabel("Frequency")
fig.suptitle(
    "Posterior Predictive Check: Spend",
    fontsize=18,
    fontweight="bold",
    y=1.05,
);

Estimating Treatment Effects on Spend#

We repeat the same counterfactual procedure as for conversion, now using the spend model.

effect_spend_mens = im_spend.estimate_effect(
    args_baseline={
        "X": X,
        "segment": jnp.zeros(n_obs, dtype=jnp.int32),
    },
    args_intervention={
        "X": X,
        "segment": jnp.ones(n_obs, dtype=jnp.int32),
    },
    on_batch=True,
)

effect_spend_womens = im_spend.estimate_effect(
    args_baseline={
        "X": X,
        "segment": jnp.zeros(n_obs, dtype=jnp.int32),
    },
    args_intervention={
        "X": X,
        "segment": 2 * jnp.ones(n_obs, dtype=jnp.int32),
    },
    on_batch=True,
)

Averaging per-observation spend differences gives the ATE posterior in dollars.

ate_spend_mens = effect_spend_mens.posterior_predictive["y"].mean(dim="y_dim_0")
ate_spend_womens = effect_spend_womens.posterior_predictive["y"].mean(dim="y_dim_0")

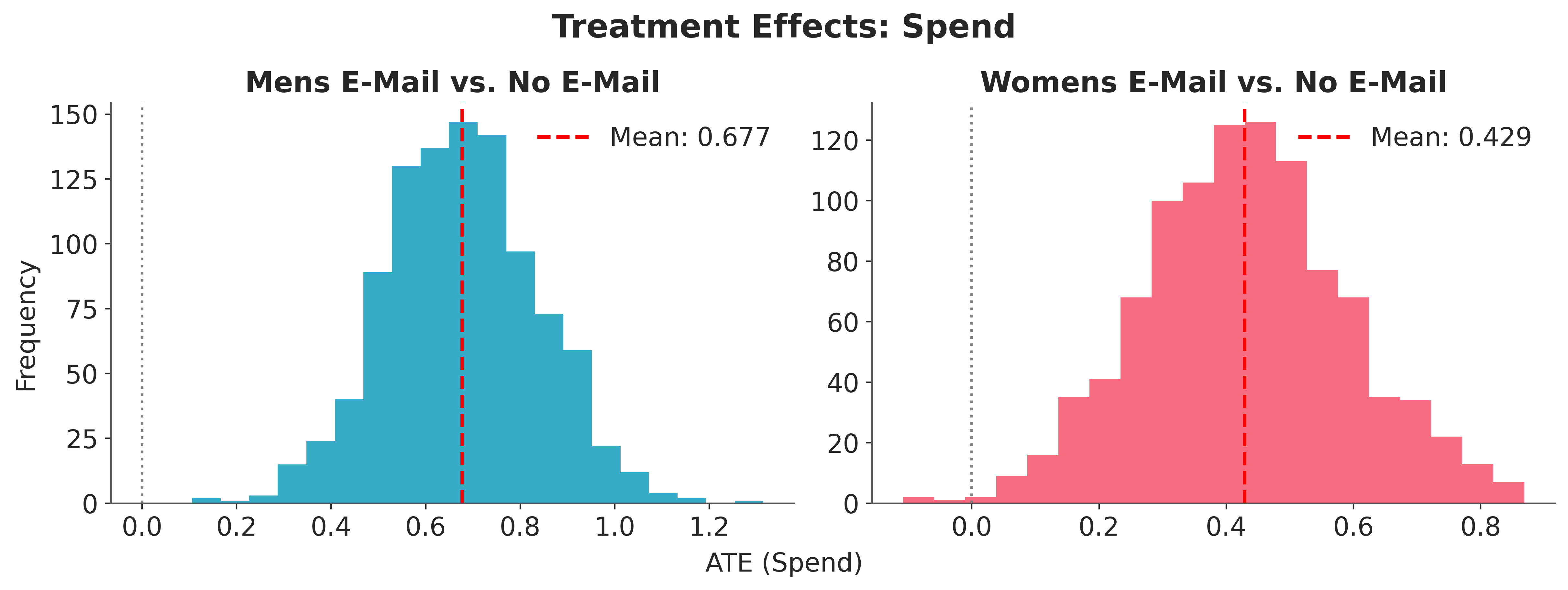

We visualize the spend ATE posteriors for both campaigns.

fig, axes = plt.subplots(1, 2, figsize=(12, 4), layout="constrained")

for i, (ax, ate, label) in enumerate(
    zip(
        axes,
        [ate_spend_mens, ate_spend_womens],
        ["Mens E-Mail vs. No E-Mail", "Womens E-Mail vs. No E-Mail"],
        strict=True,
    ),
):
    pp_ate = ate.to_numpy().flatten()
    ax.hist(pp_ate, bins=20, color=f"C{i}")
    mean = pp_ate.mean()
    ax.axvline(
        mean,
        color="red",
        linestyle="--",
        linewidth=2,
        label=f"Mean: {mean:.3f}",
    )
    ax.axvline(0, color="gray", linestyle=":")
    ax.set_title(label)
    ax.legend()

fig.supxlabel("ATE (Spend)")
fig.supylabel("Frequency")
fig.suptitle(
    "Treatment Effects: Spend",
    fontsize=18,
    fontweight="bold",
    y=1.1,
);

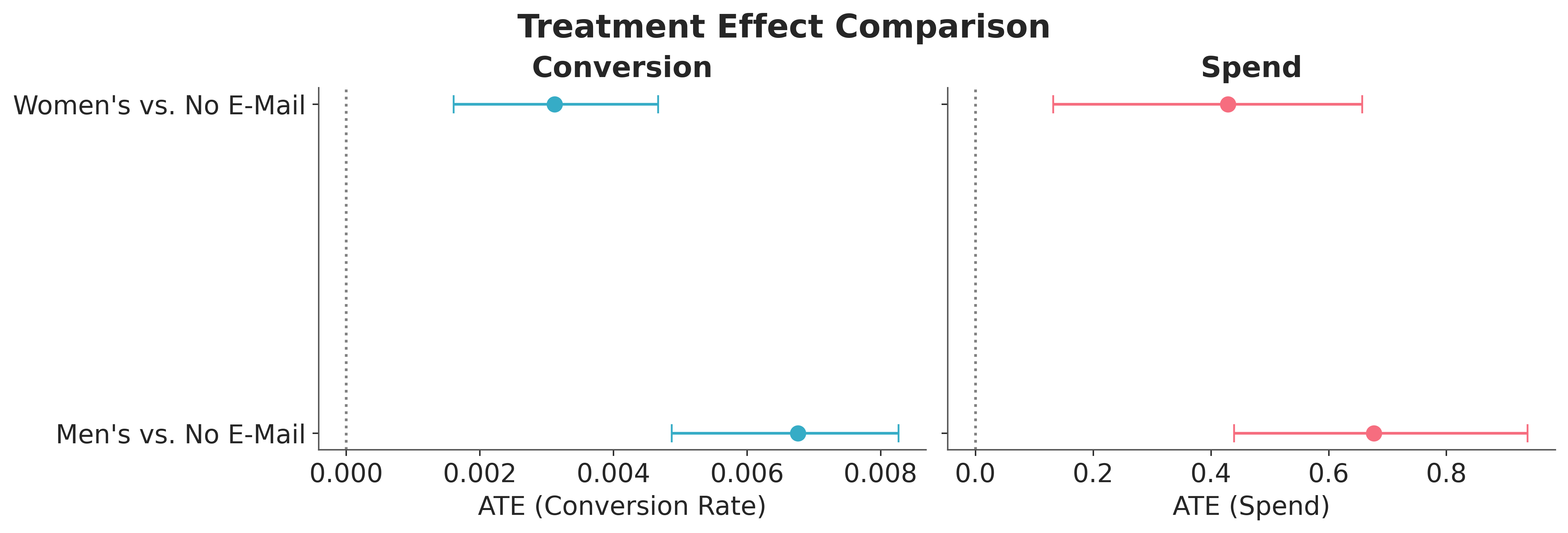

Comparison#

We compare treatment effects across both outcomes to check whether the campaigns that drive more conversions also drive more revenue.

fig, axes = plt.subplots(1, 2, figsize=(12, 4), sharey=True)

# Conversion effects
for i, ate in enumerate([ate_conv_mens, ate_conv_womens]):
    pp_ate = ate.to_numpy().flatten()
    mean = pp_ate.mean()
    hdi = azs.hdi(pp_ate)
    axes[0].errorbar(
        mean, i,
        xerr=[[mean - hdi[0]], [hdi[1] - mean]],
        fmt="o", capsize=5, color="C0", markersize=8,
    )
axes[0].set_yticks(range(2))
axes[0].set_yticklabels(["Men's vs. No E-Mail", "Women's vs. No E-Mail"])
axes[0].axvline(0, color="gray", linestyle=":")
axes[0].set_xlabel("ATE (Conversion Rate)")
axes[0].set_title("Conversion")

# Spend effects
for i, ate in enumerate([ate_spend_mens, ate_spend_womens]):
    pp_ate = ate.to_numpy().flatten()
    mean = pp_ate.mean()
    hdi = azs.hdi(pp_ate)
    axes[1].errorbar(
        mean, i,
        xerr=[[mean - hdi[0]], [hdi[1] - mean]],
        fmt="o", capsize=5, color="C1", markersize=8,
    )
axes[1].axvline(0, color="gray", linestyle=":")
axes[1].set_xlabel("ATE (Spend)")
axes[1].set_title("Spend")

fig.suptitle("Treatment Effect Comparison", fontsize=18, fontweight="bold");

Both campaigns increase conversion and spend relative to the control, and the Men’s campaign shows a larger effect on both outcomes.

References#

Freedman, D. A. (2008). On regression adjustments to experimental data. Advances in Applied Mathematics, 40(2), 180–193.
Hillstrom, K. (2008). The MineThatData E-Mail Analytics and Data Mining Challenge. MineThatData Blog.
